Visualist, 70s Video Effects
This guide has more recent changes. Switch to the latest unverified version.
User-Contributed Project
This project guide is not managed by MAKE staff.
Sound reactive video effects device for camera or pre-recorded video material. Unique retro psychedelic color effects, straight out of the seventies!
- Author: Berto
- Time required: one day
- Difficulty: Difficult
-
0 -
x 1
Starting point of this project is an easy to handle video false color device, sound reactive and also suitable for a DJ. The input signal can be a PAL/NTSC video camera or video player. As output device you can use a flatscreen or a beamer. The Visualist has mainly analog circuits so the effects are in realtime. You need to have some knowledge of electronic circuits, parts and soldering. Success!
Files
Tools
Relevant Parts
- View:
- Paginated
- Full width
Edit Step 1 — Visualist, 70s Video Effects
-

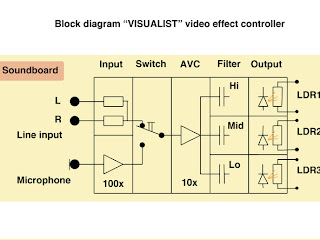

The block diagram of the sound board shows the selection switch between the built-in microphone and the line input. After that comes the automatic volume control. Third is the filter for bass, mid and high tones. Last are the LED drivers for the Light Dependent Resistors. They control the RGB color saturation in the output video signal.
-
The second picture shows the sound circuit.
-
The third picture is a photo of the sound board built on a single island board.
